Adaptor with Fixed Flange with 10K

Adaptor with Fixed Flange with 10K

：Aluminium TYPE FA
Description: Adaptor x Fixed Flange
Flange: JIS 10K
Material: Aluminium
Sizes: 2" to 8"
Flange Face: RF, FF
Add to inquiry
print Contact Us
Specification

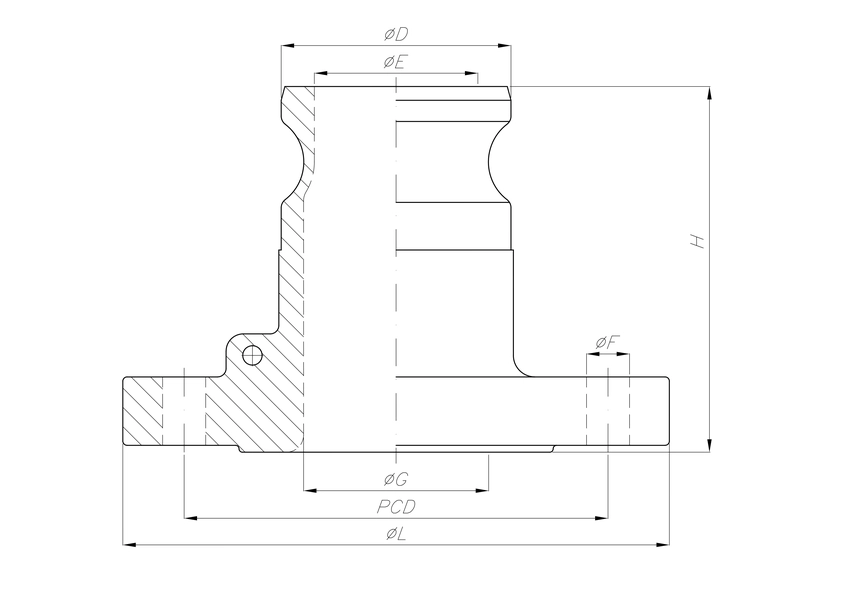

Adaptor with Fixed Flange with 10K
MM INCH øD øE øG øL H øF PCD Bolt Holes Flange Face
50 2” 63 48 55 155 91 19 120 4 RF
150 6” 176 156 168 280 104 22 240 8 FF
100 8” 227 197 200 340 95 23 290 12 FF
