Adaptor with Smooth Hose Shank
：SS316 TYPE EU
Coupling Standard: EN 14420-7 / DIN2828
Shank Standard: EN 14420-2 / DIN2817
Material: SS316
Sizes: 1" to 4"
Assembly: RK safety clamps EN 14420-3 / DIN 2817
Other dimensions on request available

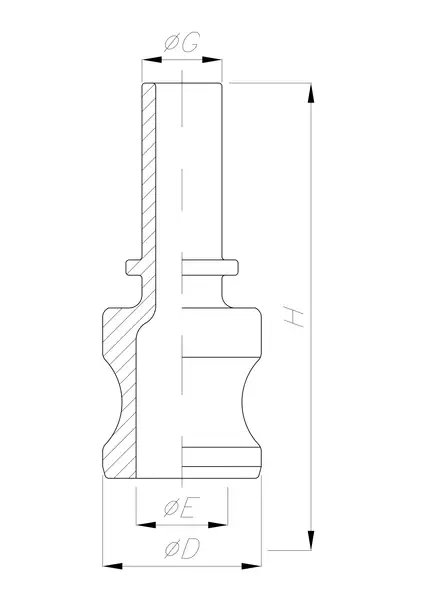

Specification
| MM | INCH | øD | øE | øG | H |
| 25 | 1” | 36 | 25 | 26 | 76 |
| 40 | 1½” | 53 | 36 | 38 | 86 |
| 50 | 2” | 63 | 46 | 51 | 99 |
| 80 | 3” | 91 | 75 | 77 | 119 |
| 100 | 4” | 120 | 102 | 101 | 155 |
