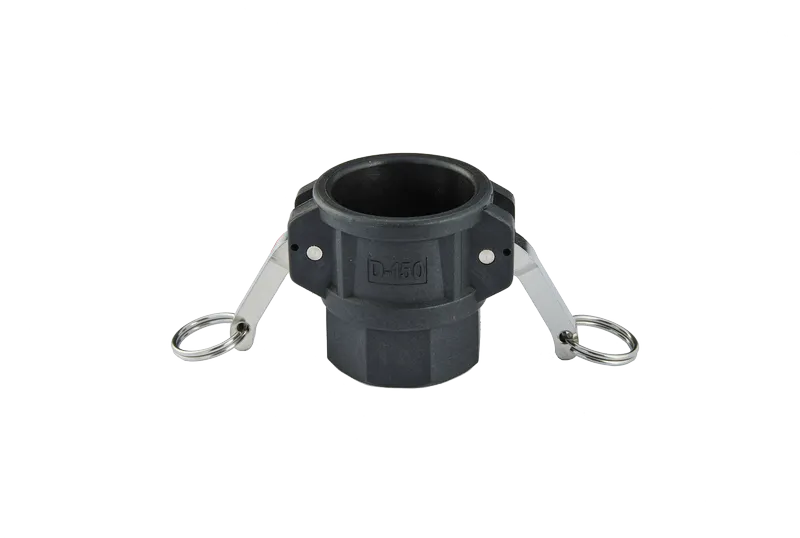

Coupler Female Threaded

Coupler Female Threaded

：PP TYPE D
Description: Coupler x Female Threaded
Material: PP
Female Thread: BSP、BSPT、NPT
Sizes: ½" to 3"
Coupler Seal: EPDM
Add to inquiry
print Contact Us
Specification

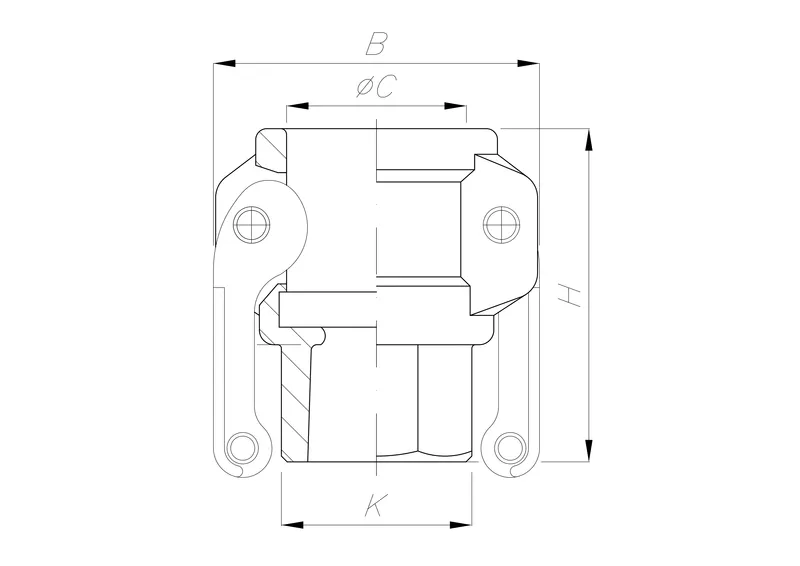

Adaptor Female Threaded
MM INCH Description B øC K H
15 ½” PP D½" Coupler Female Threaded 44 25 26 45
20 ¾” PP D¾" Coupler Female Threaded 52 32 33 50
25 1” PP D1" Coupler Female Threaded 60 37 38 60
32 1¼” PP D1¼" Coupler Female Threaded 80 46 48 65
40 1½” PP D1½" Coupler Female Threaded 87 54 54 68
50 2” PP D2" Coupler Female Threaded 98 64 67 76
80 3” PP D3" Coupler Female Threaded 133 92 96 86
