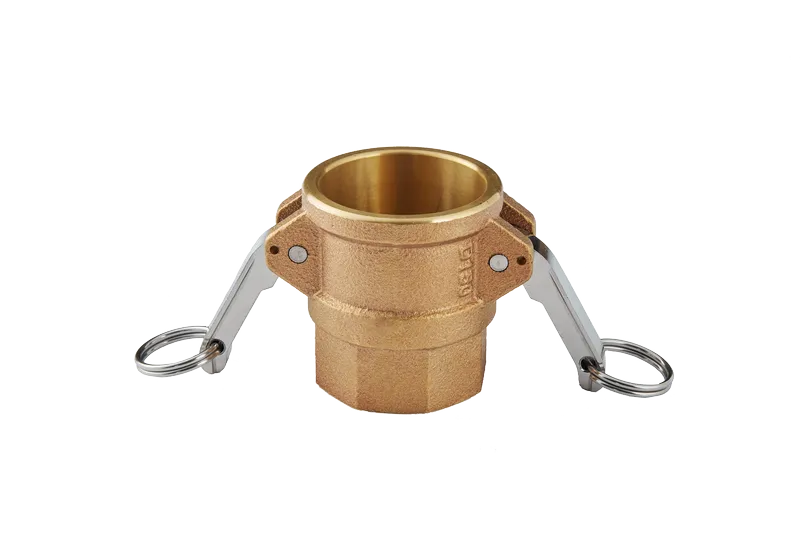

Coupler Female Threaded

Coupler Female Threaded

：Bronze TYPE D
Description: Coupler x Female Threaded
Material: Bronze
Female Thread: BSP、BSPT、NPT
Sizes: ½" to 6"
Coupler Seal: NBR
Add to inquiry
print Contact Us
Specification
Adaptor Female Threaded

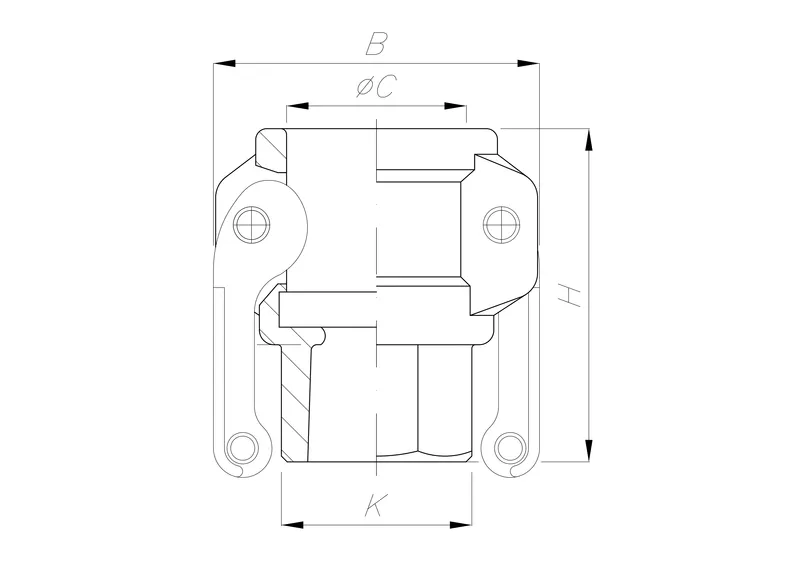

MM INCH Description B øC K H
15 ½” Bronze D½" Coupler Female Threaded 44 25 26 45
20 ¾” Bronze D¾" Coupler Female Threaded 52 32 33 50
25 1” Bronze D1" Coupler Female Threaded 60 37 38 60
32 1¼” Bronze D1¼" Coupler Female Threaded 80 46 48 65
40 1½” Bronze D1½" Coupler Female Threaded 87 54 54 68
50 2” Bronze D2" Coupler Female Threaded 98 64 67 76
65 2½” Bronze D2½" Coupler Female Threaded 111 76 82 80
80 3” Bronze D3" Coupler Female Threaded 133 92 96 86
100 4” Bronze D4" Coupler Female Threaded 162 120 124 94
125 5” Bronze D5" Coupler Female Threaded 192 146 151 95
150 6” Bronze D6" Coupler Female Threaded 234 177 180 99
