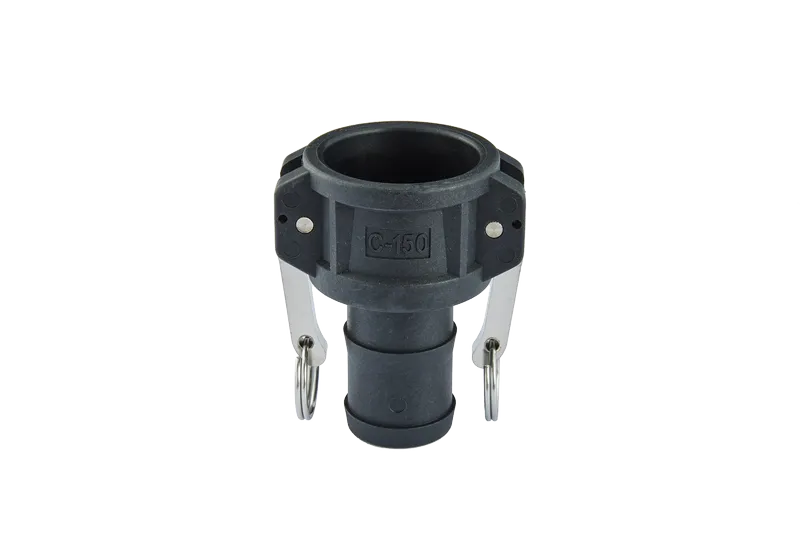

Coupler with Hose Shank

Coupler with Hose Shank

：PP TYPE C
Description: Coupler x Hose Shank
Material: PP
Sizes: ½" to 3"
Coupler Seal: EPDM
Add to inquiry
print Contact Us
Specification

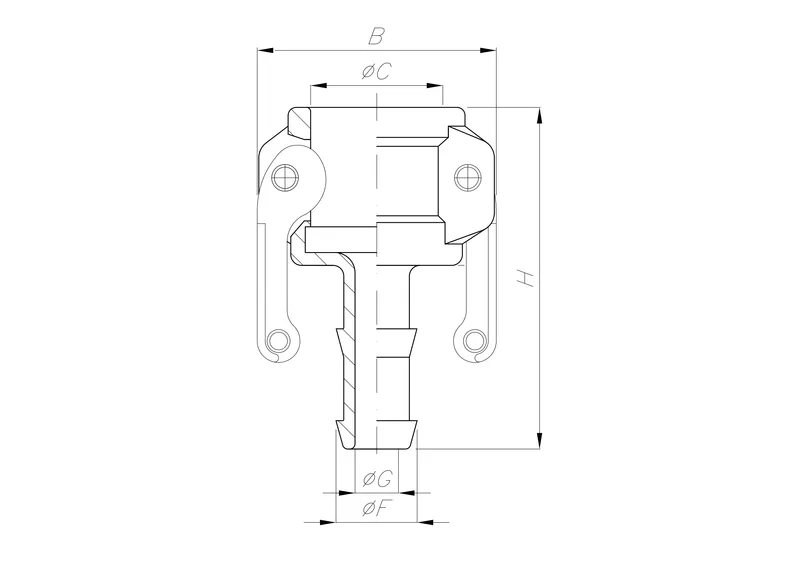

Adaptor Female Threaded
MM INCH Description B øC øG F H
15 ½” PP C½" Coupler with Hose Shank 44 25 8 15 64
20 ¾” PP C¾" Coupler with Hose Shank 52 32 14 21 84
25 1” PP C1" Coupler with Hose Shank 60 37 20 27 96
32 1¼” PP C1¼" Coupler with Hose Shank 80 46 27 34 102
40 1½” PP C1½" Coupler with Hose Shank 87 54 33 40 106
50 2” PP C2" Coupler with Hose Shank 98 64 45 53 122
80 3” ø79 PP C3" Coupler with Hose Shank 133 92 69 78 156
