Coupler with Fixed Flange with TABLE

Coupler with Fixed Flange with TABLE

：SS316 TYPE FC
Description: Coupler x Fixed Flange
Flange: TABLE D、TABLE E、TABLE D/E
Material: SS316
Sizes: 1" to 6"
Flange Face: FF
Add to inquiry
print Contact Us
Specification

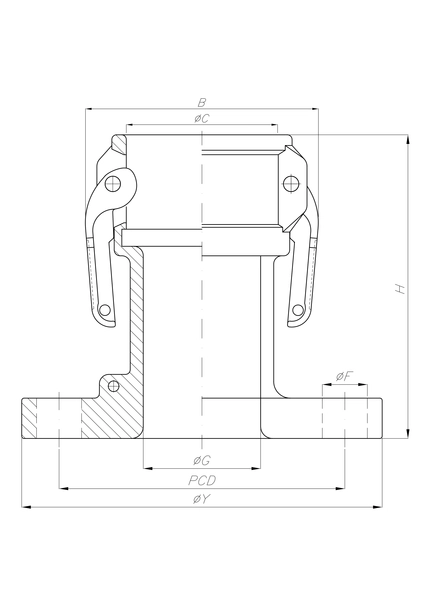

Coupler with Fixed Flange with TABLE
MM INCH B øC øG øY H øF PCD Bolt Holes Flange Face
25 1” 59 37 25 115 120 14 83 4 FF
50 2” 100 64 50 150 127 18 114 4 FF
80 3” 136 92 73 186 142 18 147 4 FF
100 TABLE D 4” 161 121 103 215 152 18 178 4 FF
100 TABLE E 4” 161 121 103 215 152 18 178 8 FF
150 TABLE D 6” 231 177 156 279 168 18 235 8 FF
150 TABLE E 6” 231 177 156 279 168 22 235 8 FF
