Adaptor with Fixed Flange with PN16

Adaptor with Fixed Flange with PN16

：SS316 TYPE FA
Description: Adaptor x Fixed Flange
Flange: DIN PN16
Material: SS316
Sizes: ½" to 6"
Flange Face: RF
Add to inquiry
print Contact Us
Specification
Adaptor with Fixed Flange with PN16

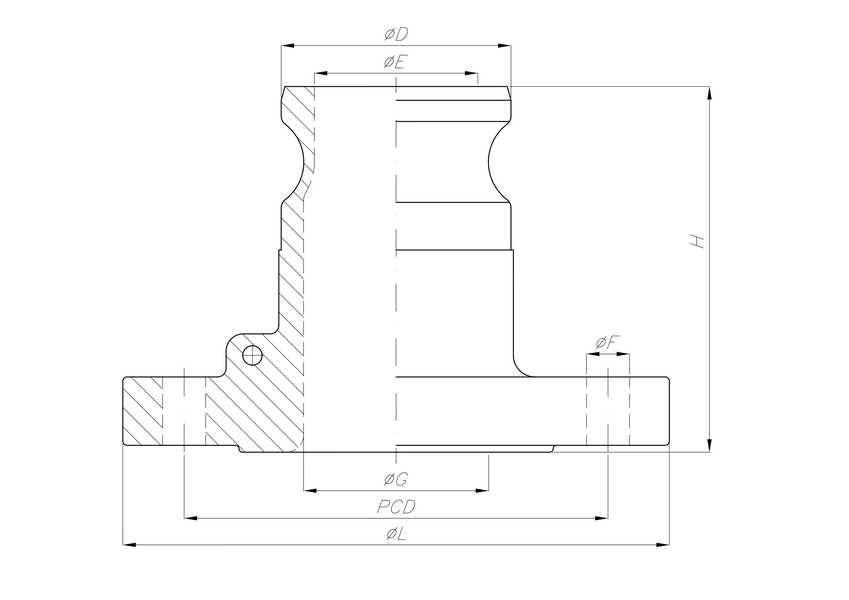

MM INCH øD øE øG øL H øF PCD Bolt Holes Flange Face
15 ½” 24 14 19 95 59 14 65.0 4 RF
20 ¾” 32 20 23 104 75 14 75.0 4 RF
25 1” 37 24 28 115 69 14 85.0 4 RF
32 1¼” 45 30 40 139 81 18 100.0 4 RF
40 1½” 53 38 43 150 86 18 110.0 4 RF
50 2” 63 48 55 164 91 18 124.5 4 RF
65 2½” 76 60 68 185 95 18 145.5 4 RF
80 3” 92 74 83 200 100 18 160.0 8 RF
100 4” 120 103 108 220 114 18 180.0 8 RF
125 5” 146 128 138 250 107 18 209.5 8 RF
150 6” 176 156 168 280 111 22 240.5 8 RF
