Adaptor with Fixed Flange with 150 LB

Adaptor with Fixed Flange with 150 LB

：Aluminium TYPE FA
Description: Adaptor x Fixed Flange
Flange: ANSI 150 LB
Material: Aluminium
Sizes: 3" to 6"
Flange Face: RF
Add to inquiry
print Contact Us
Specification
Adaptor with Fixed Flange with 150 LB

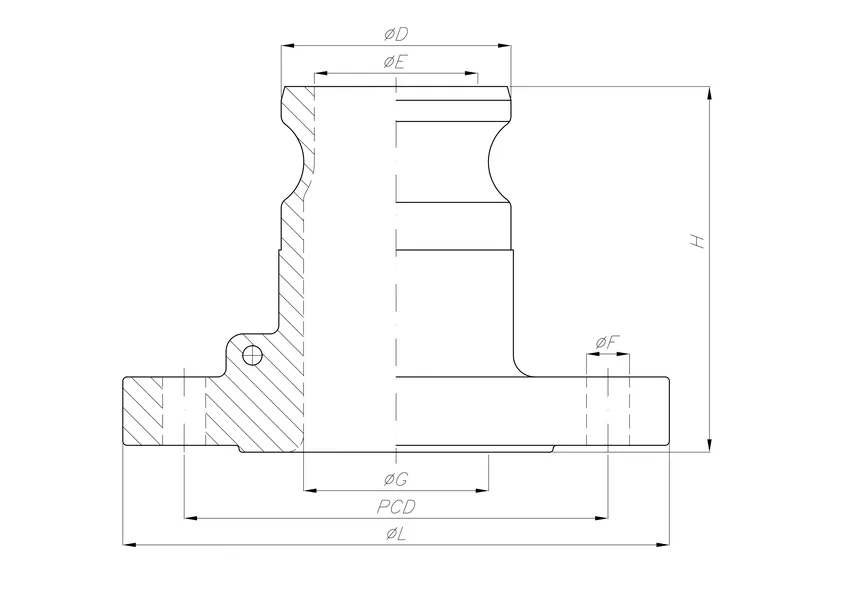

MM INCH øD øE øG øL H øF PCD Bolt Holes Flange Face
80 3” 92 74 82 190 100 19 152.5 4 RF
100 4” 120 103 108 229 100 19 190.5 8 RF
150 6” 176 156 167 280 108 22 242.0 8 RF
