Smooth Hose Shank for Welding
：SS316 TYPE EUW
Shank Standard: EN 14420-2 / DIN2817
Material: SS316
Sizes: 1" to 4"
Welding end: Welding to hose size
Assembly: RK safety clamps EN 14420-3 / DIN 2817
Other dimensions on request available
Specification

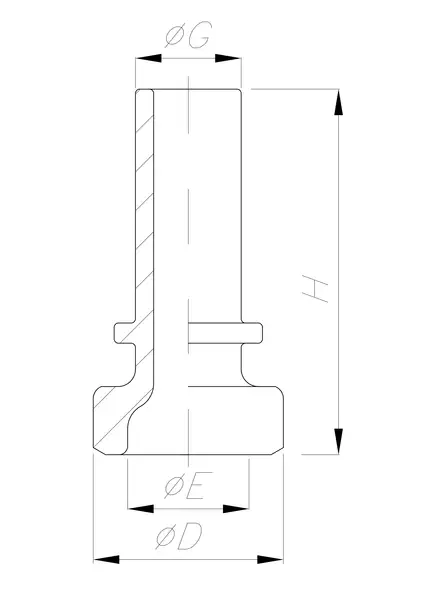

| MM | INCH | øD | øE | K | H |
| 25 | 1” | 33 | 25 | 26 | 59 |
| 40 | 1½” | 48 | 37 | 38 | 62 |
| 50 | 2” | 60 | 46 | 51 | 69 |
| 65 | 2½” | 75 | 64 | 64 | 77 |
| 80 | 3” | 89 | 75 | 77 | 87 |
