Adaptor Female Threaded with Thread Seal
：SS316 TYPE AU
Coupling Standard: EN 14420-7 / DIN2828
Material: SS316
Female Thread: BSP
Thread Seal: PTFE
Sizes: ½" to 4"
Other dimensions on request available
Specification

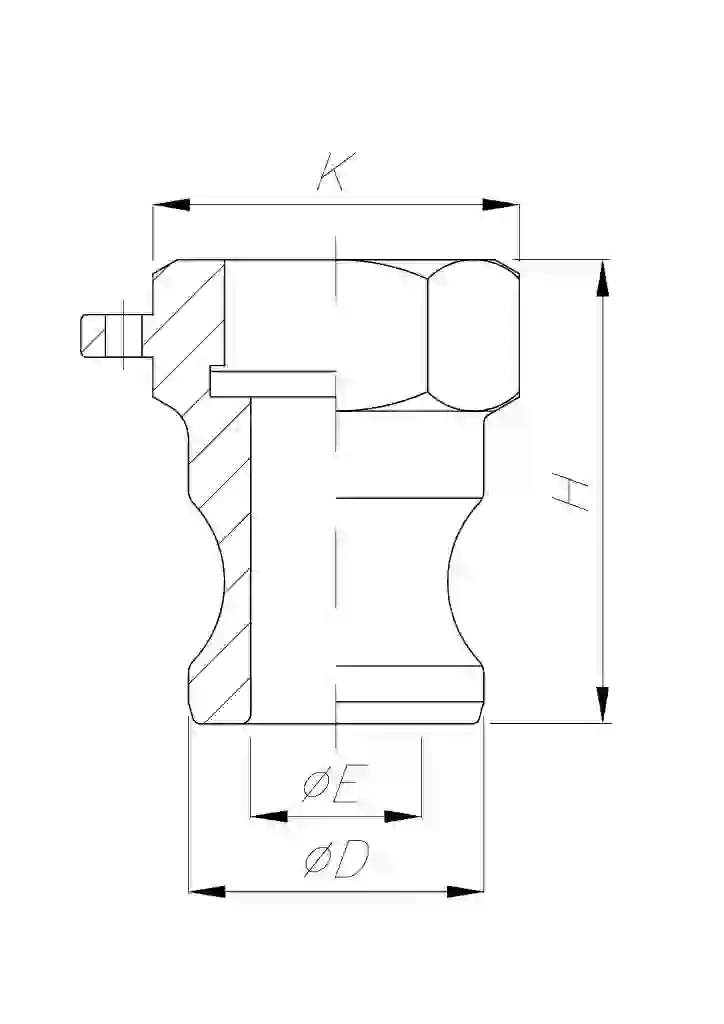

| MM | INCH | øD | øE | K | H |
| 15 | ½” | 24 | 14 | 27 | 39 |
| 20 | ¾” | 32 | 21 | 33 | 38 |
| 25 | 1” | 37 | 25 | 38 | 46 |
| 32 | 1¼” | 45 | 30 | 48 | 53 |
| 40 | 1½” | 53 | 39 | 55 | 53 |
| 50 | 2” | 63 | 48 | 68 | 60 |
| 65 | 2½” | 76 | 60 | 83 | 77 |
| 80 | 3” | 92 | 75 | 96 | 68 |
| 100 | 4” | 120 | 102 | 123 | 75 |
